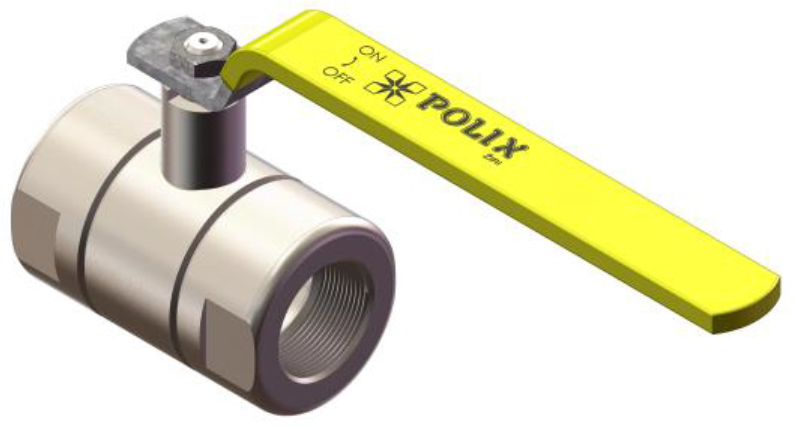

Ball Valve KPT-G THREADED PN40 DN VX PX

Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE
O-Ring
Viton
Handle
Carbon steel (Galvanized) - S235JR (St 37-2)
Bore
Full Bore
07_kpt-g-dn15-skica
Ball Valve KPT-G THREADED PN40 DN VX PX DN15-DN50
DN15-DN50
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
PN40
Art. nr. DN A B C ⌀D E F G K L Weight (kg)
A958751 15 68 16,9 80 15,9 34 G ½" 153 32 17 0,5
A958752 20 78 21,2 90,6 20 39 G ¾" 153 40 18 0,8
A958753 25 97,5 24,2 99 25 47 G 1" 153 44 22 1,4
A958754 32 107,8 30,2 108 31 52 G 1¼" 237 56 22 1,8
A958755 40 122,4 38,1 116 40 61 G 1½" 276 70 24 4,0
A958756 50 143 44,5 122,5 50 71,5 G 2" 276 82 27 5,4

Notes

Fire safe design.

Ball valves for oxygen available upon request
