Ball Valve KPV-G FLANGED Se.27 PN40 DP VX PX

Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE**
O-Ring
Viton
Handle
Forged Aluminium - Al6061, option S235JT (St 37-2)
Bore
Full Bore
10_kpv-g-flanged-se27-dn25-skica
Ball Valve KPV-G FLANGED Se.27 PN40 DP VX PX DN50-DN100
DN50-DN100

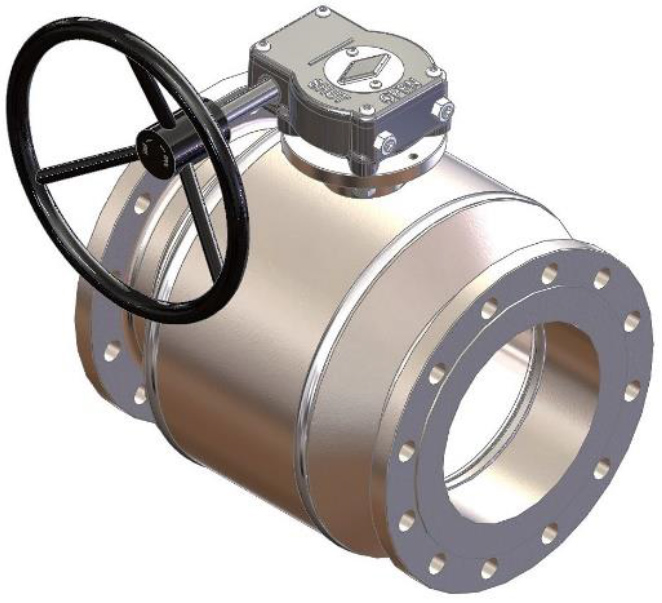

10_kpv-g-flanged-se27-dn150-skica
Ball Valve KPV-G FLANGED Se.27 PN40 DP VX PX DN150-DN200
DN150-DN200
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
No image set
PN40
Art. nr. DN A B C ⌀D G b ⌀Dk ⌀d Nr. Top flange
ISO
Shaft
K x h
Weight
(kg)
TRUNION MOUNTED BALL
A957086 50 150 165 120 50 210 20 1245 18 4 F05 14 x 18 9,80
A957088 80 180 200 170 78 320 24 160 18 8 F07 17 x 23 19,70
A957089 100 190 235 185 99 320 24 190 22 8 F07 17 x 23 26,20
A957091 150 350 300 - 149 - 28 250 26 8 F10 22 x 27 88,50
A957092 200 400 375 - 200 - 34 320 30 12 F12 27 x 30 157,90

Notes

Face to face dimensions conform to EN558-1 S27.
DN50 to DN200 with spring loaded washers
DN 150 – DN200 are with the manual gearbox.
Antistatic and fire safe design.
**DN150 – DN200 have seals with 15% graphite.

Ball valves for oxygen available upon request
