Ball Valve KPV-G FLANGED PN40 DP VX PX

Ball Valve KPV-G FLANGED AN150 DP VX PX DN25-DN150
Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE**
O-Ring
Viton
Handle
Forged Aluminium - Al6061, option S235JT (St 37-2)
Bore
Full Bore
09_kpv-g-flanged-dn25-skica

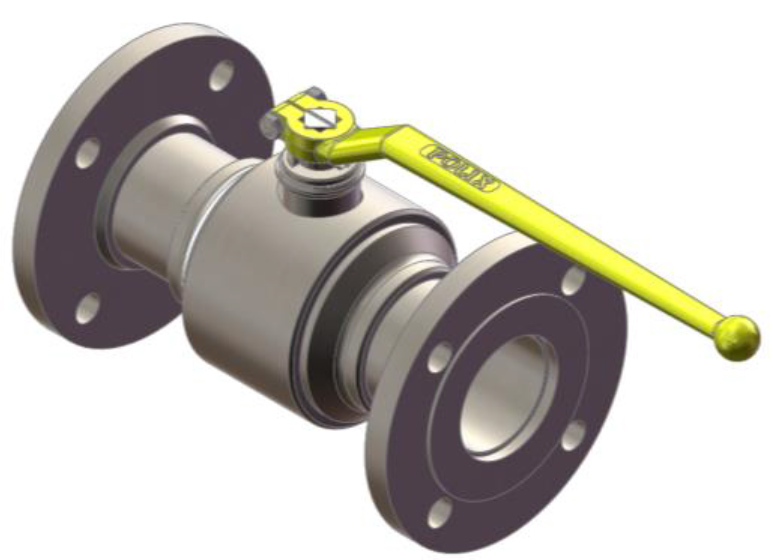

Ball Valve KPV-G FLANGED PN40 DP VX PX DN25-DN150
DN25-DN150
09_kpv-g-flanged-dn150-skica

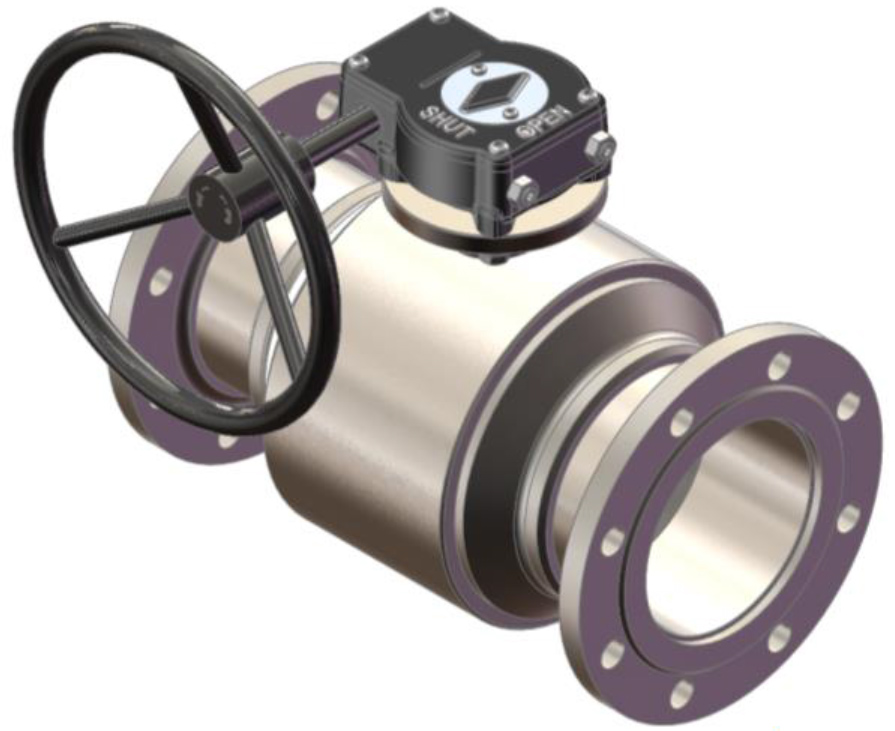

Ball Valve KPV-G FLANGED PN40 DP VX PX DN150-DN300
DN150-DN300
09_kpv-g-flanged-dn350-skica

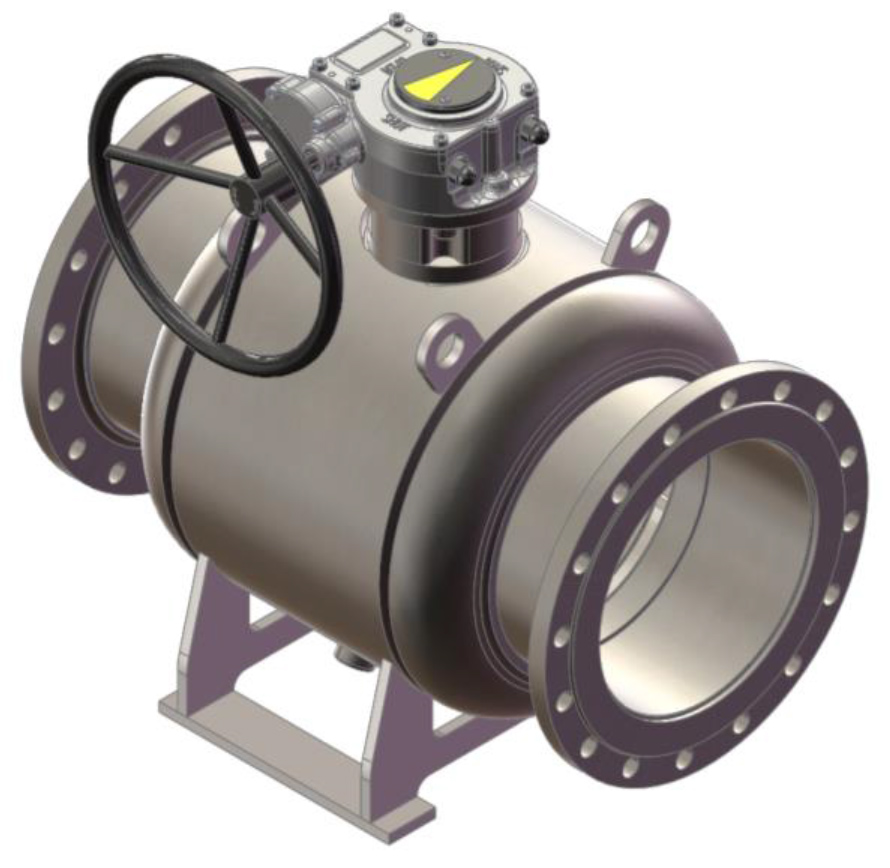

Ball Valve KPV-G FLANGED PN40 DP VX PX DN350-DN400
DN350-DN400
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
No image set
PN40
Art. nr. DN A B C ⌀D G b ⌀Dk ⌀d Nr. Weight (kg)
TRUNION MOUNTED BALL
A957403 25 160 115 76 25 158 18 85 14 4 4,20
A957404 32 180 140 108 32 180 18 100 18 4 5,60
A957405 40 200 150 114 40 180 18 110 18 4 6,80
A957406 50 230 165 128 50 222 20 125 18 4 9,50
A957407 65 290 185 160 63,5 293 22 145 18 8 15,10
A957408 80 310 200 170 78 293 24 160 18 8 20,50
A957409 100 350 235 185 99 415 24 190 22 8 32,80
A957410 125 400 270 260 124 1000 26 220 26 8 57,70
A957411 150 450 300 - 149 - 28 250 26 8 82,80
A957412 200 550 375 - 200 - 34 320 30 12 162,30
A905555 250/200* 450 450 - 200 - 38 385 33 12 182,20
A957413 250 650 450 - 250 - 38 385 33 12 275,30
A957414 300 750 515 - 300 - 42 45 33 16 418,60
A957435 350 850 580 - 334 - 46 510 36 16 637,50
A957436 400 950 660 - 387 - 50 585 39 16 897,50

Notes

Face to face dimensions conform to DIN3202 F17.
DN50 to DN400 with spring loaded washers.
DN200–DN400 and DN150 PN40 are with the manual gearbox.
Antistatic and fire safe design.
*DN250 – reduced bore.
**DN150 – DN400 have seals with 15% graphite
Ball valves DN350 and DN400 for pressure PN40 have Inox solid ball.

Ball valves for oxygen available upon request
Preloader
