Ball Valve KPV-G FLANGED PN16 DP VX PX

Ball Valve KPV-G FLANGED AN150 DP VX PX DN25-DN150
Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE**
O-Ring
Viton
Handle
Forged Aluminium - Al6061, option S235JT (St 37-2)
Bore
Full Bore
09_kpv-g-flanged-dn25-skica

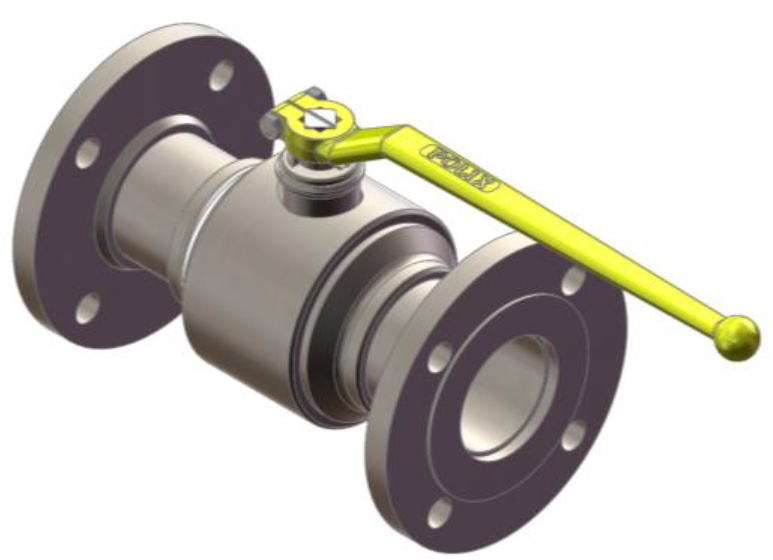

Ball Valve KPV-G FLANGED PN16 DP VX PX DN25-DN150
DN25-DN150
09_kpv-g-flanged-dn150-skica

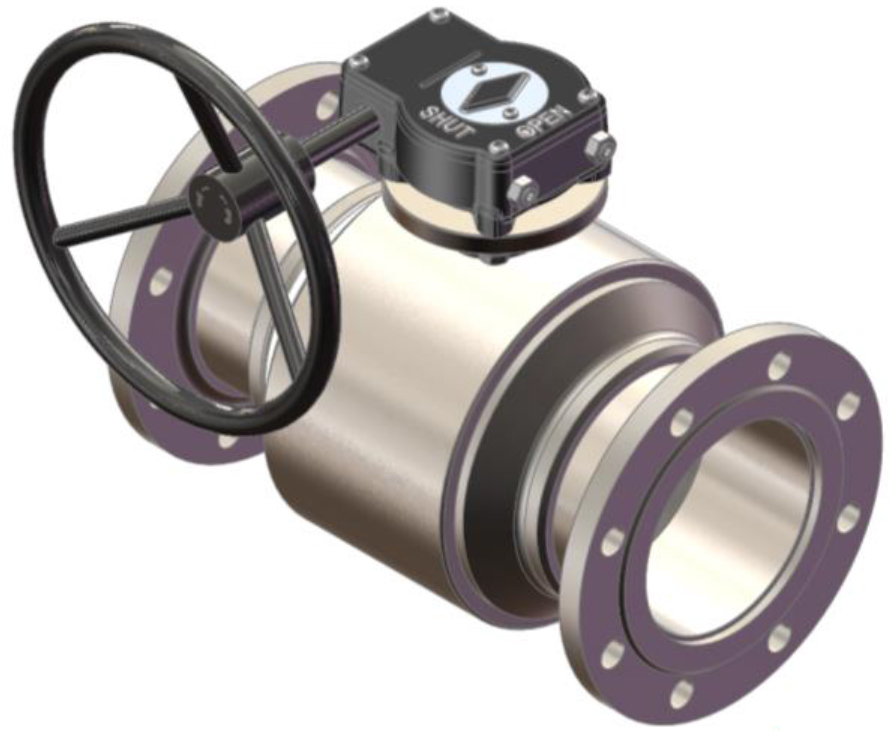

Ball Valve KPV-G FLANGED PN16 DP VX PX DN150-DN300
DN150-DN300
09_kpv-g-flanged-dn350-skica

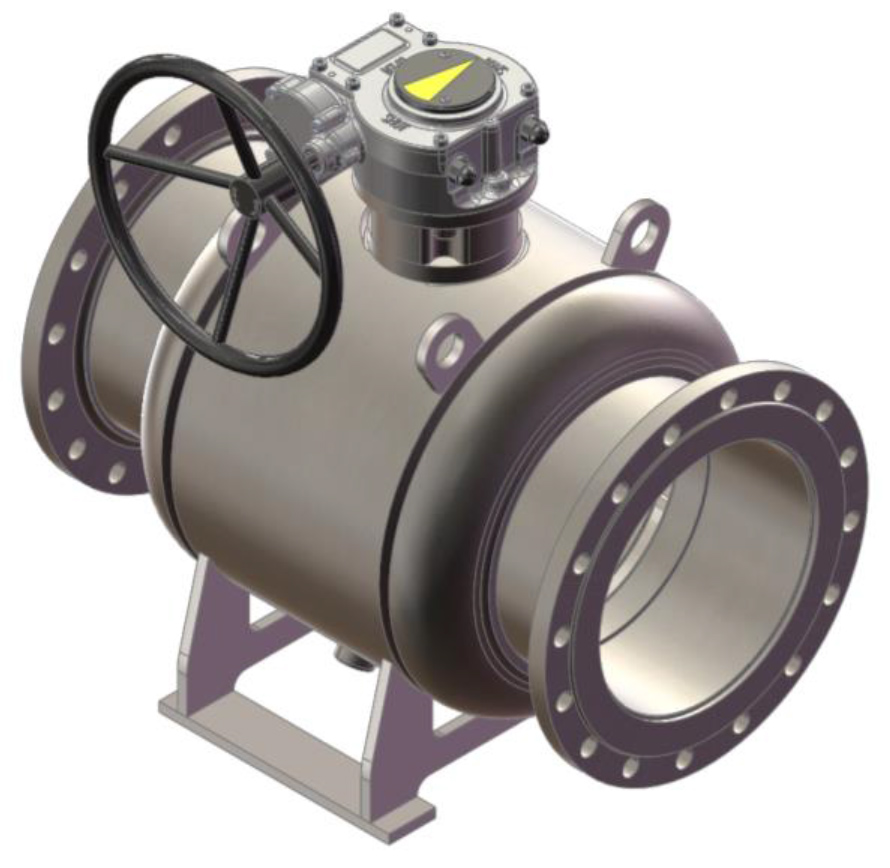

Ball Valve KPV-G FLANGED PN16 DP VX PX DN350-DN400
DN350-DN400
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
No image set
PN16
Art. nr. DN A B C ⌀D G b ⌀Dk ⌀d Nr. Weight (kg)
TRUNION MOUNTED BALL
A957303 25 160 115 76 25 158 16 85 14 4 4,20
A957304 32 180 140 108 32 180 16 100 18 4 5,30
A957305 40 200 150 114 40 180 16 110 18 4 6,40
A957306 50 230 165 128 50 222 18 125 18 4 9,30
A957307 65 290 185 160 63,5 293 18 145 18 4 14,30
A957308 80 310 200 170 78 293 20 160 18 8 19,20
A957309 100 350 220 185 99 415 20 180 18 8 29,30
A957310 125 400 250 260 124 1000 22 210 18 8 52,90
A957311 150 450 285 277 149 1000 22 240 22 8 76,30
A957312 200 550 340 - 200 - 24 295 22 12 144,60
A905471 250/200* 450 405 - 200 - 26 355 26 12 151,20
A957313 250 650 405 - 250 - 26 355 26 12 245,80
A957314 300 750 460 - 300 - 28 410 26 12 372,90
A957315 350 850 520 - 334 - 30 470 26 16 444,90
A957316 400 950 580 - 387 - 32 525 30 16 605,30

Notes

Face to face dimensions conform to DIN3202 F17.
DN50 to DN400 with spring loaded washers.
DN200–DN400 and DN150 PN40 are with the manual gearbox.
Antistatic and fire safe design.
*DN250 – reduced bore.
**DN150 – DN400 have seals with 15% graphite
Ball valves DN350 and DN400 for pressure PN40 have Inox solid ball.

Ball valves for oxygen available upon request
Preloader
