Ball Valve KPV-G, Transitional Piece Steel - PE, Underground Installation PN10 DY VX PX PG0

Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE
O-Ring
Viton
Stem extension
Carbon Steel – P235TR1, A105
Transitional piece
Carbon Steel / Polyethylene – PE
16_kpv-g-underground-dn32-skica

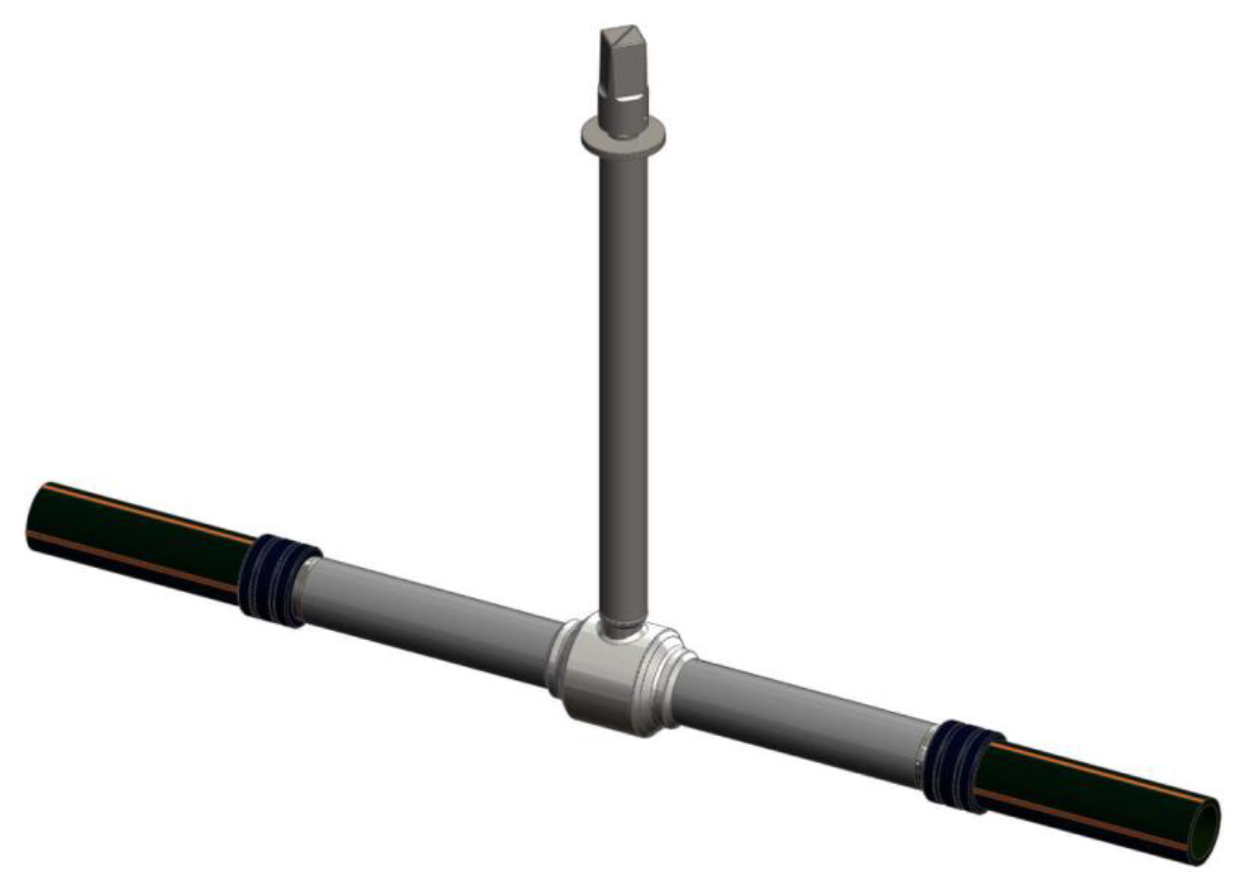

Ball Valve KPV-G, Transitional Piece Steel - PE, Underground Installation PN10 DY VX PX PG0 DN32-DN225
DN32-DN225
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
PN10
Art. nr. DN PE
Connection
DN Ball
Valve
A
(±20 mm)
B ⌀D ⌀D1 s Shaft
⌀SxP/K
Weight
(kg)
TRUNION MOUNTED BALL
A905305 32 25 1065 33 25 33,7 3,0 17,8 x 14 9,80
A905118 40 32 1075 35 32 42,4 3,7 17,8 x 14 11,90
A905119 50 40 1065 41 40 48,3 4,6 17,8 x 14 14,20
A905120 63 50 1130 50 50 60,3 5,8 18 x 14 20,60
A905121 75 65 1165 65 63,5 76,1 6,8 23,8 x 19 27,60
A905122 90 80 1180 75 78 88,9 8,2 23,8 x 19 35,40
A905123 110 100 1210 93 99 114,3 10,0 23,8 x 19 53,00
A905419 160 150 1580 135 149 168,3 14,6 K30 114,40
A905487 225 200 1668 176 200 219,1 20,5 K30 178,20

Notes

Antistatic and fire safe design.
DN50 to DN200 with spring loaded washers

Preloader
