Manual Gearbox for Butterfly Valves

Materials
Body
Cast Iron – GG25
Wheel
Aluminium

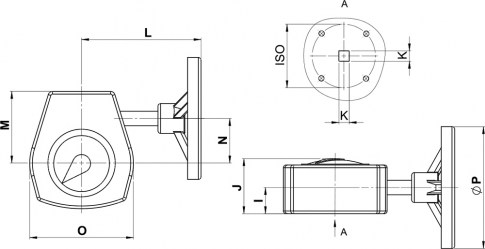

69_manual-gearbox-for-butterfly-valves-skica

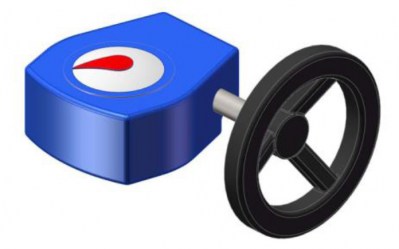

69_manual-gearbox-for-butterfly-valves-slika
Preloader
Art. nr. DN I J L M N O ⌀P ISO K Weight (kg)
A031498 40-100 28 67 135 77 45 118 135 F7 K11 2,00
A031499 125-150 33 78 220 110 75 170 210 F7 K14 5,00
A031500 200 33 78 220 110 75 170 250 F10 K17 5,00
A031501 250-300 33 78 220 110 75 170 300 F10 K22 5,00
