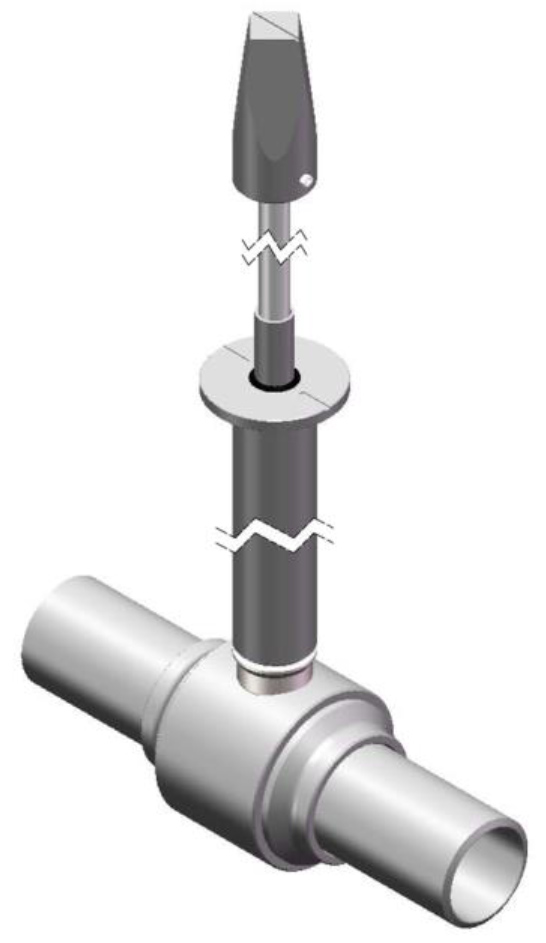

Ball Valve KPV-G Underground Installation, Telescopic PN40 DU VX PX PG0 K24-30

Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE
O-Ring
Viton
Leading ring
Turcite
Stem extension
Telescopic - Carbon Steel – P235TR1, A105

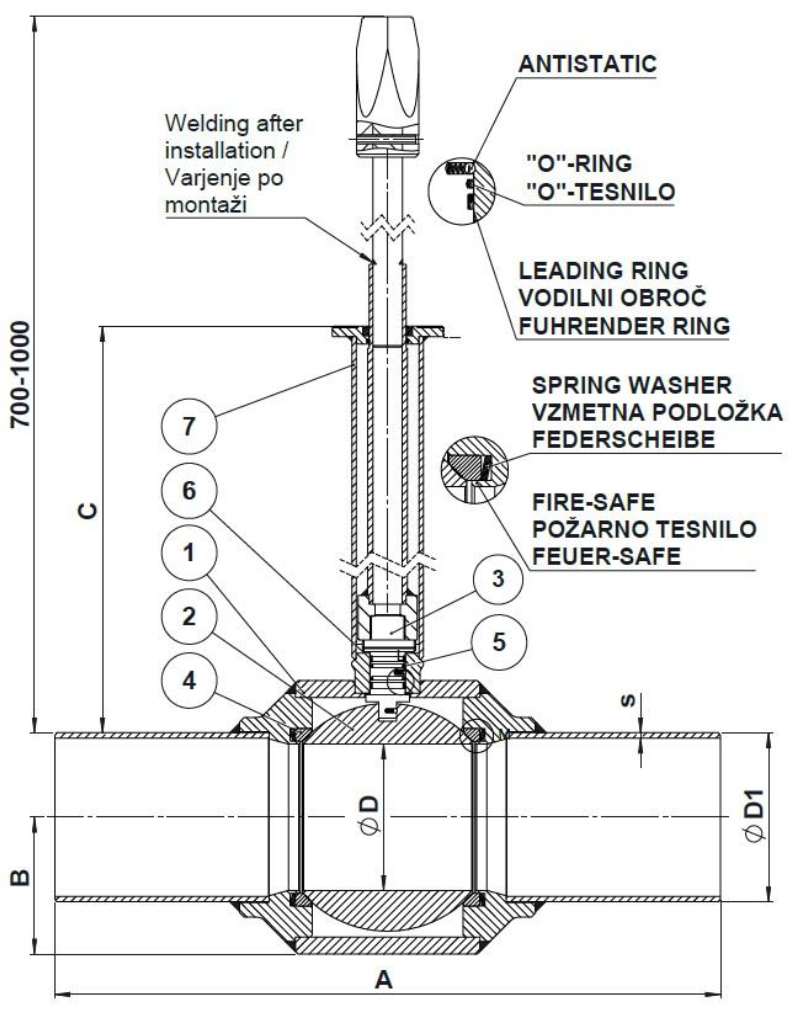

14_kpv-g-underground-dn25-skica
Ball Valve KPV-G Underground Installation, Telescopic PN40 DU VX PX PG0 K24-30 DN25-DN150
DN25-DN150
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
No image set
PN40
Art. nr. DN A B C ⌀D ⌀D1 s Weight (kg)
TRUNION MOUNTED BALL
A957533 25 270 33 362 25 33,7 4,05 4,4
A957534 32 270 35 363 32 42,4 2,6 5,7
A957535 40 270 41 366 40 48,3 2,6 6,5
A957536 50 300 50 370 50 60,3 4,5 8,2
A957537 65 360 65 365 63,5 76,1 2,9 13,6
A957538 80 390 75 370 78 88,9 3,2 17,9
A957539 100 450 93 370 99 114,3 3,6 33
A957540 125 525 115 367 124 139,7 4,0 63,5
A957541 150 600 135 370 149 168,3 4,5 73,5

Notes

DN50 to DN150 with spring-loaded washers.
Antistatic and Fire Safe Design.

Ball valve suitable for up to 20% Hydrogen Application available on request.
