Ball Valve KPV-G, Transitional Piece Steel - PE, Underground Installation, Two Side Drainage PN10 DY VX PX PG0 I2

Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE
O-Ring
Viton
Stem extension
Carbon Steel – P235TR1, A105
Transitional piece
Carbon Steel / Polyethylene – PE

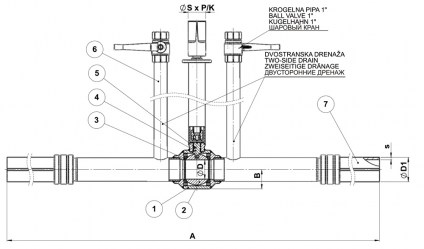

17_kpv-g-underground-dn63-skica
Ball Valve KPV-G, Transitional Piece Steel - PE, Underground Installation, Two Side Drainage PN10 DY VX PX PG0 I2 DN63-DN225
DN63-DN225
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
PN10
Art. nr. DN PE Connection DN Ball Valve A (±20 mm) B ⌀D ⌀D1 s Shaft ⌀SxP/K Weight (kg)
TRUNION MOUNTED BALL
A905478 63 50 1130 50 50 60,3 5,8 18 x 14 20,60
A905558 75 65 1165 65 63,5 76,1 6,8 23 x 19 27,60
A905479 90 80 1180 75 78 88,9 8,2 23 x 19 35,40
A905431 125 100 1210 93 99 114,3 11,4 23 x 19 53,00
A905432 180 150 1580 135 149 168,3 16,4 K30 114,40
A905482 225 200 1660 176 200 219,1 20,5 K30 178,20

Notes

Antistatic and Fire Safe Design.
DN50 to DN200 with spring-loaded washers.

Ball valve suitable for up to 20% Hydrogen Application available on request.
