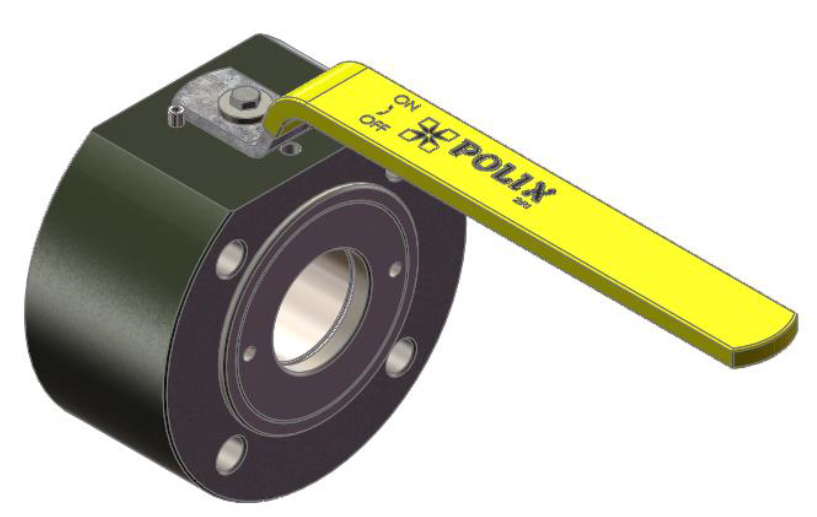

Ball Valve KPA-G PN40 DP VX PX

No image set
Materials
Body
Carbon Steel – A105, P235TR2
Ball
Stainless Steel - X5CrNi18-10 (A304)
Stem
Stainless Steel - X30Cr13 (A420)
Seats
PTFE
O-Ring
Viton
Handle
Carbon steel (Galvanized) - S235JR (St 37-2)
03_kpa-g-dn15-skica
Ball Valve KPA-G PN40 DP VX PX DN15-DN200
DN15-DN200
Preloader
Working temperature:
-20 °C/ +60 °C
No image set
PN40
Art. nr. DN A ⌀B C ⌀D G ⌀Dk ⌀d Nr. Weight (kg)
A955083 65 100 175 160 63,5 293 145 M16 8 15,00
A955084 80 120 190 170 78 293 160 M16 8 20,00
A955085 100 140 220 185 99 293 190 M20 8 28,50

Notes

Article numbers for DN15–DN50 are the same for PN16 and PN40 and are always declared as PN40.
Antistatic and fire safe design.
When adapter is needed, check on page 57 in the catalog.

Ball valves for oxygen available upon request
