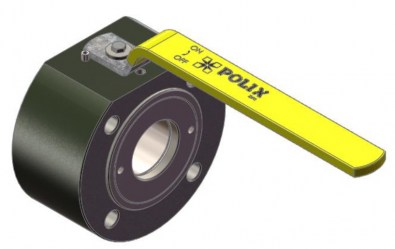

Ball Valve KPA-G PN16 DP VX PX
DN15-DN200
Working temperature:
-20 °C/ +60 °C
PN16
| Art. nr. | DN | A | ⌀B | C | ⌀D | G | ⌀Dk | ⌀d | Nr. | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| A955071 | 15 | 39 | 88 | 80 | 16 | 150 | 65 | M12 | 4 | 2,80 |
| A955072 | 20 | 39 | 98 | 80 | 20 | 150 | 75 | M12 | 4 | 2,90 |
| A955073 | 25 | 48 | 110 | 76 | 25 | 158 | 85 | M12 | 4 | 3,00 |
| A955074 | 32 | 55 | 130 | 108 | 32 | 180 | 100 | M16 | 4 | 4,50 |
| A955075 | 40 | 65 | 140 | 114 | 40 | 180 | 110 | M16 | 4 | 6,50 |
| A955076 | 50 | 80 | 150 | 128 | 50 | 222 | 125 | M16 | 4 | 11,00 |
| A955077 | 65 | 100 | 175 | 160 | 63,5 | 293 | 145 | M16 | 4 | 15,00 |
| A955078 | 80 | 120 | 190 | 170 | 78 | 293 | 160 | M16 | 8 | 20,00 |
| A955079 | 100 | 140 | 220 | 185 | 99 | 293 | 180 | M16 | 8 | 28,50 |
| A955080 | 125 | 175 | 296 | 194 | 125 | 541 | 210 | M16 | 8 | 35,00 |
| A955081 | 150 | 210 | 330 | 213 | 150 | 541 | 240 | M20 | 8 | 97,00 |
| A955082 | 200 | 270 | 435 | 310 | 200 | 1000 | 295 | M20 | 12 | 179,00 |
Notes
Article numbers for DN15 to DN50 are the same for PN16 and PN40 and are always designated as PN40.
Antistatic and Fire Safe Design.
Ball valve suitable for up to 20% Hydrogen Application available on request.
Ball valve for Oxygen Service available on request.
